mcp·free·private·no account required

Give your AI assistant the routing table and registries.

pWhoIs MCP puts the resources of Prefix WhoIs inside Claude, Cursor and any model context protocol (“MCP”) client. Ask who announces an address, what an AS originates, or who is knocking in a log, and the assistant answers from the live global BGP table, enriched with registry and geo data. The same service we have run since 2005. Connect once. No account, no email, no API key. And private: like the whois service itself, we do not keep what you ask about.

Connect in one minute See the tools Network diagrams

claude

> who is knocking on port 22 in this log?

pwhois › pwhois_lookup_ips  47 addresses
44 routed, 3 not routed.
AS14061 DigitalOcean, LLC: 19  ·  AS16509 Amazon.com, Inc.: 11  ·  AS4134 Chinanet: 6
AS9009 M247 Europe SRL: 4  ·  AS20473 The Constant Company: 4

Most of the noise is rented cloud capacity in two providers; six addresses sit in
one Chinanet /16 and share a prefix. Three addresses are unrouted, likely spoofed.
Remaining allowance today: 4,953 of 5,000.

setup

Connect once. Ask forever.

Add the connector from your assistant. A page opens in your browser with a single Connect button. Press it and you are done.

Open Settings, then Connectors.
Choose Add custom connector.
Paste https://pwhois.org/mcp/ and press Add.
Press Connect. A browser page opens; press Connect there too.
Start a chat and ask about any address.

https://pwhois.org/mcp/

tools

Example questions the MCP can answer.

Each tool costs a fixed number of queries from your daily allowance. The assistant sees the same costs, so it can plan a batch instead of guessing.

pwhois_lookup_ip1 query

One address, the full record

Origin AS, most-specific prefix, AS path, organization, network name, country and route age for a single IPv4 or IPv6 address.

try “Who announces 45.148.10.77 and how long has that route existed?”

pwhois_lookup_ips1 per address

Enrich thousands of addresses at once

Thousands of addresses in one call, clustered by origin AS and country, so a log becomes a short list of networks. Full records for up to 500 at a time; summaries for up to 5,000; the assistant chains calls for more.

try “Who is knocking on port 22 in this log? Group by network.”

pwhois_asn_info1 query

Who an AS is

Organization, country and registration details for an autonomous system, and how many prefixes it originates right now.

try “What is AS27552 and where is it based?”

pwhois_asn_prefixes1 per family

What an AS originates

Every prefix the AS is announcing right now, IPv4 or IPv6, with AS paths.

try “List the IPv6 prefixes AS13335 originates.”

pwhois_asn_transit1 query

What passes through an AS

Prefixes seen transiting the AS, with each origin, for mapping upstreams and downstreams.

try “Which prefixes transit AS6939 in the current table?”

pwhois_prefix_routes1 query

Routes covering a prefix

The active routes for a CIDR block: the best path, or every route-server view when you ask for all.

try “Show me the routes for 8.8.8.0/24 and who announces them.”

pwhois_org_search1 query

Find networks by name

Organizations on record whose name contains your text, with their AS numbers and announced prefixes.

try “Which ASes belong to organizations named Hurricane Electric?”

pwhois_registry_record1 query

The filing beside the fact

The registry record for an organization ID, an AS number or a contact handle, with abuse and technical contacts.

try “Pull the registry record for AS3356 and give me the abuse contact.”

pwhois_map5 per chart

Draw a network diagram

A picture of the routing around an address, prefix or AS: providers on the left, the network in the middle, downstream networks and prefixes on the right, with links to the interactive map.

try “Draw a network diagram of AS15169.”

pwhois_routing_statusfree

How fresh the table is

Table size, peer count and when the current cache was built.

try “How current is the routing data you are using?”

pwhois_my_quotafree

What you have left

Remaining daily allowance for the address you are connecting from, and when it resets.

try “How many pwhois queries do I have left today?”

network diagrams·pwhois_map

Network diagrams

Ask for a picture and the assistant draws one. pwhois_map charts the routing around an address, a prefix or an AS from the live global table: providers on the left, the network at the centre, downstream networks and their prefixes on the right, every node labelled with the organization, country and size Prefix WhoIs has on record. The chart comes back as a PNG (SVG on request), with a link to the interactive map and a share link that reproduces the exact look. Collector vantage points, the networks through which pWhois’s route collectors see the routes, are counted in every chart caption and drawn only on request (collectors: true).

Ask in your own words

These all mean the same thing, and so do “map this ASN” and “show me a network diagram”. The assistant routes them to pwhois_map.

“draw a network diagram of AS15169”
“show me a network diagram for 8.8.8.8”
“show me the BGP path to 2001:4860::/32”
“display the network path for AS7018 including what’s behind it”

What you get

What comes back: the picture, a one-line summary (networks, edges, and sampled when a cap trimmed the data), the interactive map link (pwhois.org/maps/7018/4) and a share link (pwhois.org/maps/<id>) that opens the same chart with the same colours, font and layout.
Cost: 5 queries per chart from the same daily allowance as the other tools; the per-minute limit applies too. A failed chart, or an address with no route, costs nothing.
Limits: width 640–2048 px. Large networks are trimmed to stay legible: the busiest neighbours, a dozen prefixes per network, and a bounded downstream fetch (at most 20,000 routes per family). When a cap cuts the data the answer says sampled; the interactive map can load the full downstream cone.
Cached: maps are kept for 24 hours, so asking again asks the routing server nothing new.

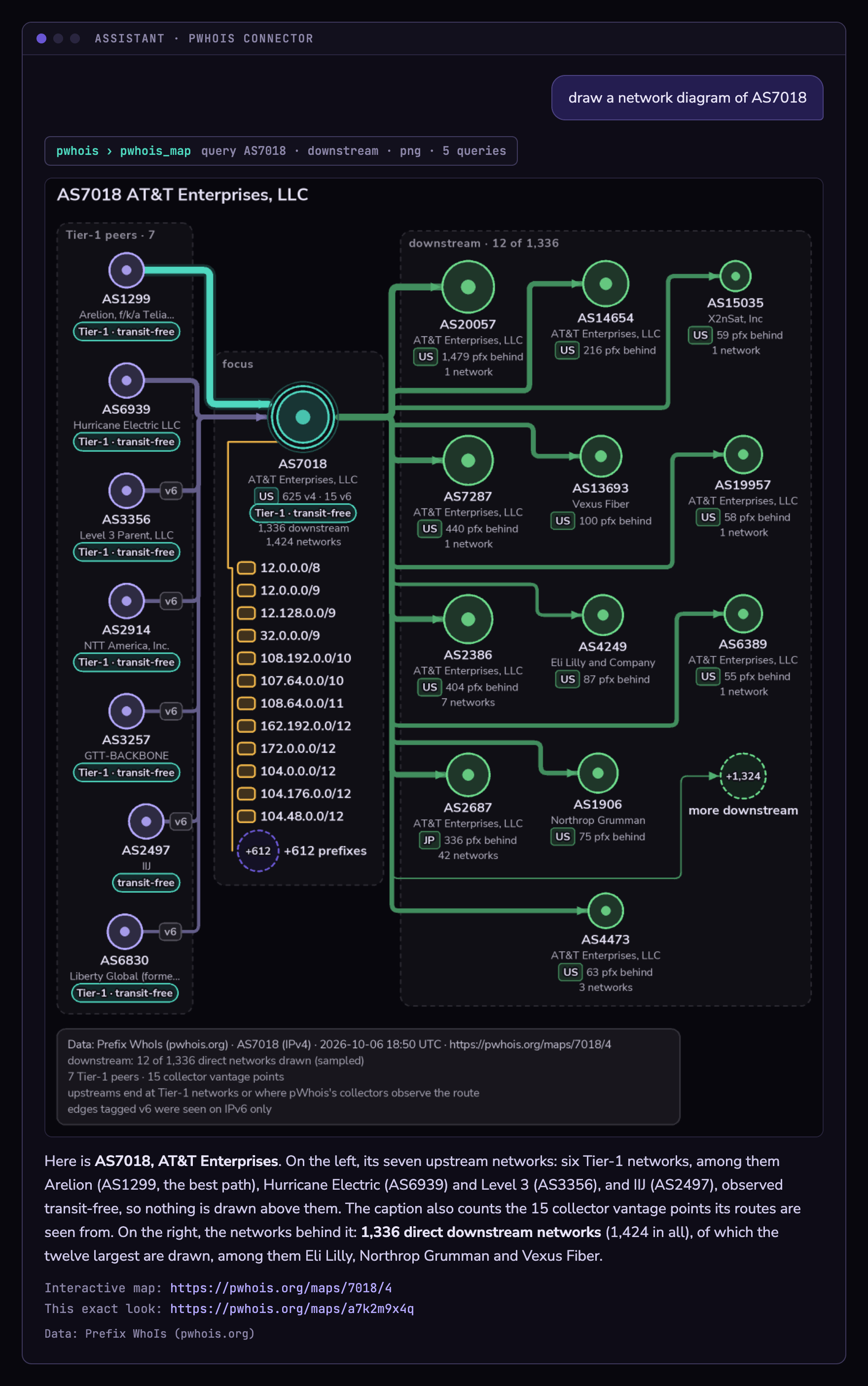

Illustration of an assistant conversation: the user asks “draw a network diagram of AS7018”, the assistant calls pwhois_map and replies with the AS7018 chart inline, a short explanation of its upstreams and downstream networks, the interactive map link and the share link. — illustrationAn assistant turn, composed for this page. The chart inside is a real render of AS7018; the chat window, the reply text and the share id are illustrative. Open full size

Parameters

name	values	default	meaning
query	string	required	An IPv4 or IPv6 address, a CIDR prefix, or an AS number (`AS15169` or `15169`). A hostname is resolved to its address first.
family	4 or 6	4	Which address family to draw for an AS. An address or prefix always uses its own.
downstream	true / false	true	For an AS: also draw the networks behind it: its direct downstream networks and the prefixes they bring. Ignored for addresses and prefixes.
collectors	boolean	false	Also draw the networks whose sessions feed pWhois’s route collectors; they show where routes are observed from, not who the network connects to.
preset	nightwire / phosphor / ember / paper / mono	nightwire	The colours. `paper` is light, for documents and print; `mono` is grayscale.
width	640–2048	1200	Image width in pixels. The height follows the drawing.
format	png / svg	png	PNG by default; SVG on request (`format: svg`).
font	Nunito Sans / JetBrains Mono	Nunito Sans	The label font.

Five looks

Pass preset to pick one. The same palettes as the interactive map.

nightwireThe site palette: violet on near-black.

phosphorTeal terminal glow.

emberAmber and coral, warm on dark.

paperLight, for documents and print.

monoGrayscale, for print and colour-blind safety.

Three real charts

Drawn by the same renderer the connector uses, from the live table. Select a chart to open it full size.

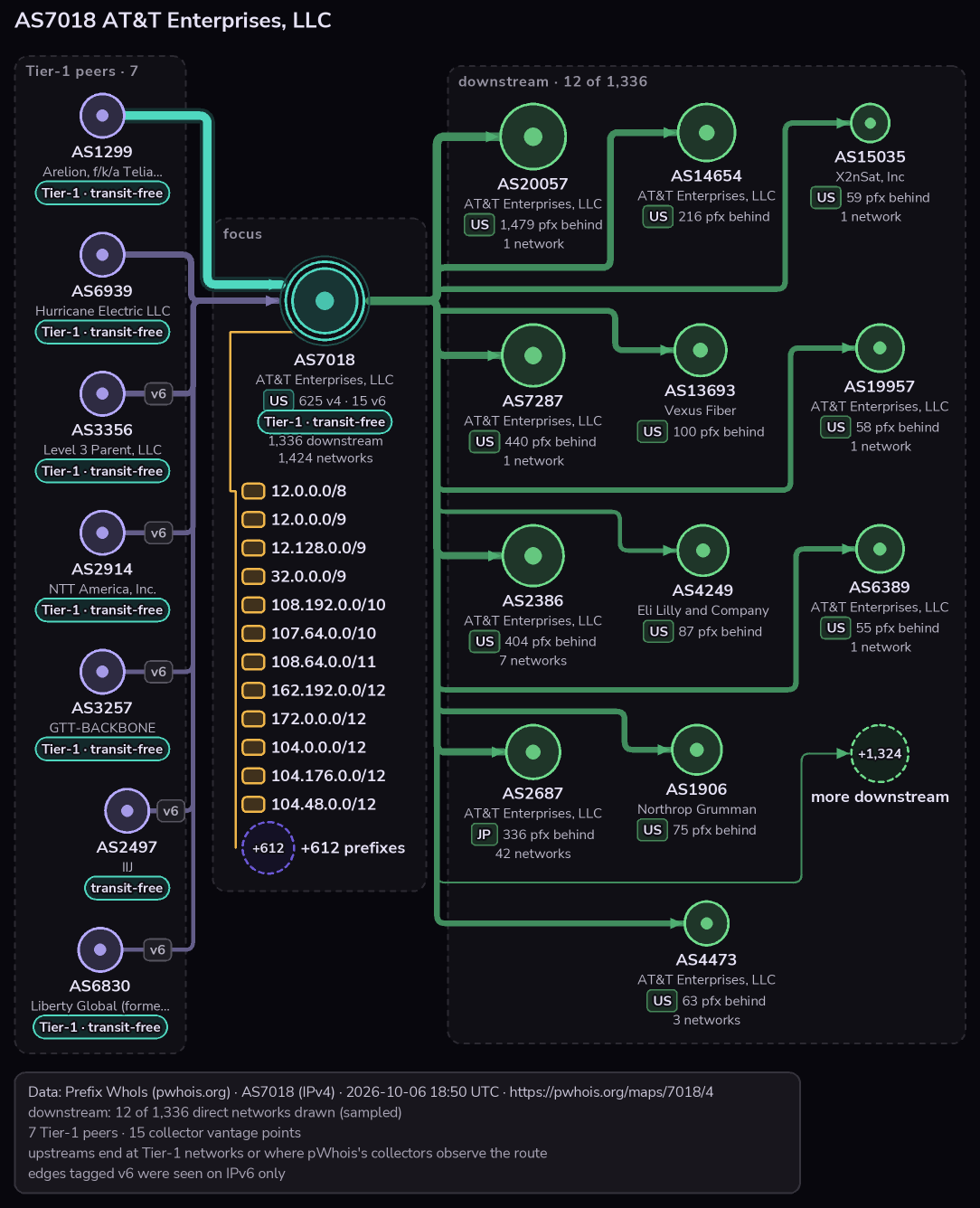

Network diagram of AS7018 (AT&T Enterprises): its seven upstream networks on the left in a “Tier-1 peers” group (six Tier-1 networks and IIJ, observed transit-free), AS7018 with its prefixes in the middle, and the twelve largest of its 1,336 direct downstream networks on the right. — **“display the network path for AS7018 including what’s behind it”**
Its seven upstream networks on the left under “Tier-1 peers · 7” (six on VOSTROM’s Tier-1 list and IIJ, observed transit-free), so nothing is drawn above them; AT&T in the middle with its prefixes; and the twelve largest of 1,336 direct downstream networks on the right, with “+1,324 more downstream”. The caption counts 15 collector vantage points. This is the IPv4 view, so edges tagged v6 were seen on IPv6 only. Real data from whois.pwhois.org, drawn by the MCP renderer on 6 October 2026 (nightwire). Open full size · SVG · Interactive map

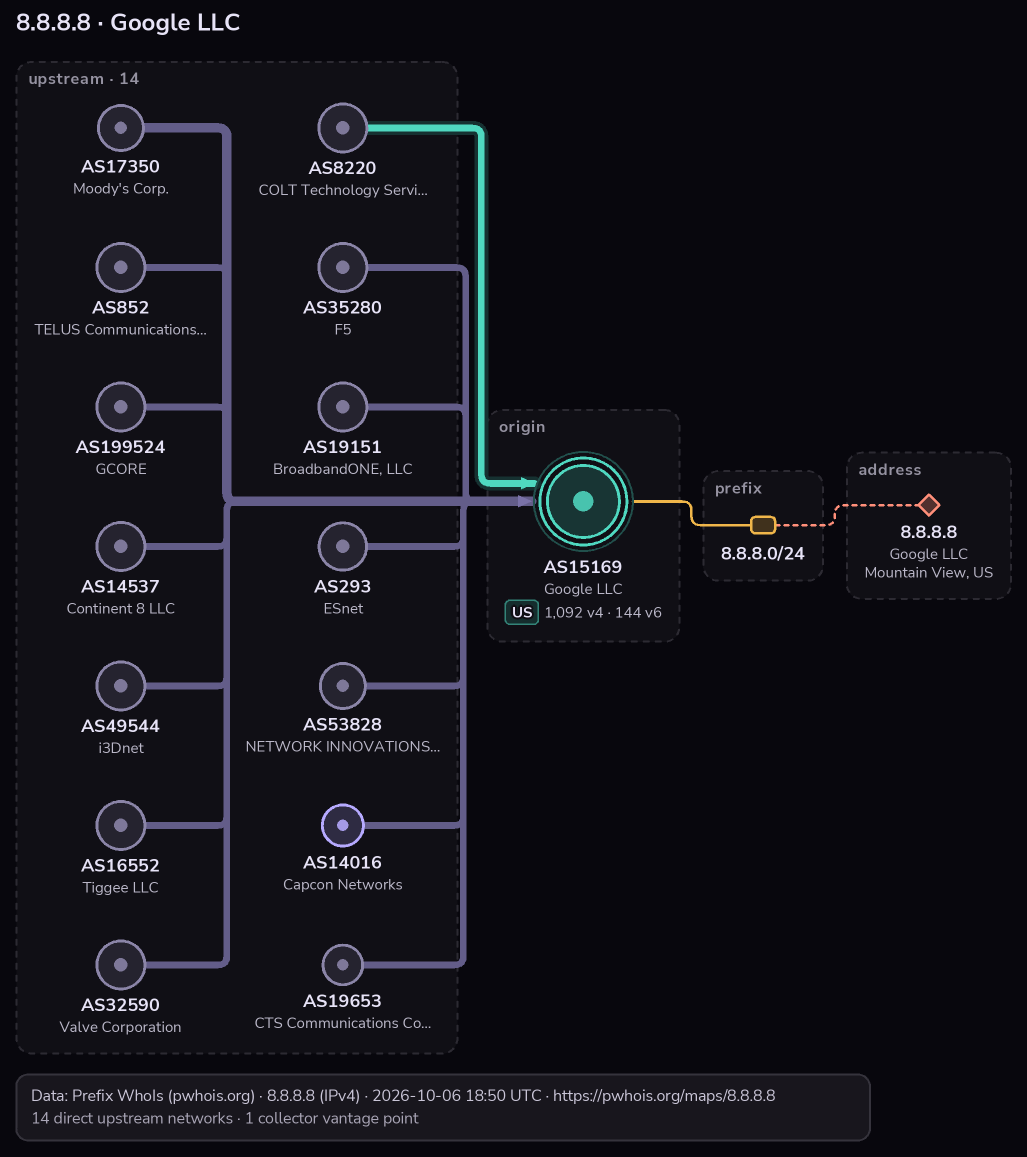

Network diagram of the origin and providers for 8.8.8.8: all fourteen direct upstream networks in two sub-columns on the left, the best path via AS8220 highlighted, then the origin AS15169 (Google LLC), the covering prefix 8.8.8.0/24 and the address. — **“show me a network diagram for 8.8.8.8”**
All fourteen direct upstream networks that carry the route, in two sub-columns, with the best path (via COLT, AS8220) in teal; then the origin AS (Google), the covering prefix and the address. None of these providers is on the Tier-1 list; the caption counts one collector vantage point. Real data from whois.pwhois.org, drawn by the MCP renderer on 6 October 2026 (nightwire). Open full size · SVG · Interactive map

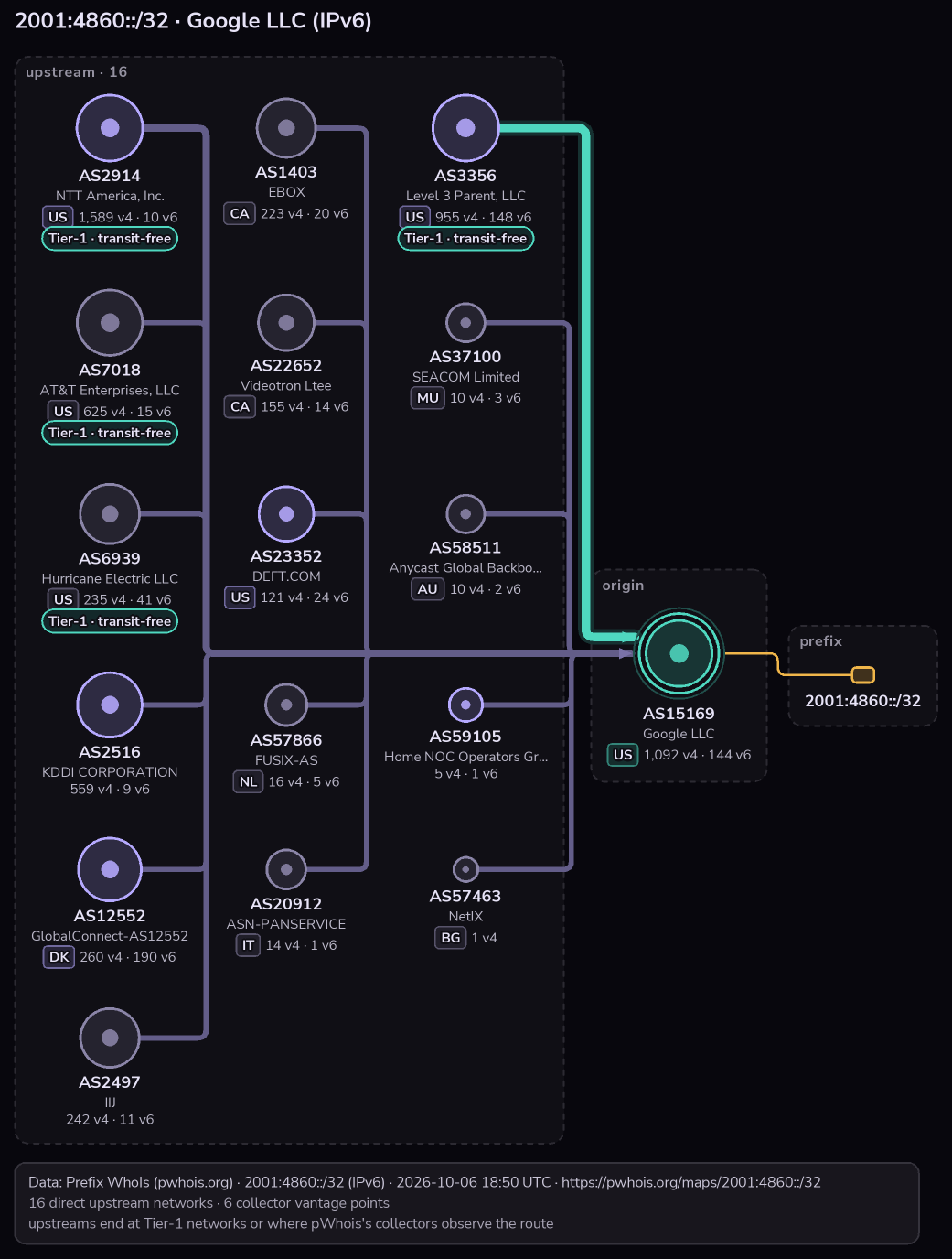

Network diagram of the BGP paths to 2001:4860::/32 (IPv6): all sixteen direct upstream networks in three sub-columns on the left, four of them marked Tier-1 (NTT, AT&T, Hurricane Electric and Level 3), the best path via Level 3 highlighted, and the origin AS15169 (Google LLC) with the prefix on the right. — **“show me the BGP path to 2001:4860::/32”**
An IPv6 prefix: all 16 direct upstream networks in three sub-columns, four with a “Tier-1 · transit-free” pill (NTT, AT&T, Hurricane Electric, Level 3), the best path via Level 3 in teal, and the origin; the caption counts six collector vantage points. Real data from whois.pwhois.org, drawn by the MCP renderer on 6 October 2026 (nightwire). Open full size · SVG · Interactive map

Every chart carries the attribution line “Data: Prefix WhoIs (pwhois.org)”. Please keep it when you use a chart elsewhere.

fair use

Batch, don’t loop.

Queries share the daily allowance of the network address you connect from: 5,000 per day by default, the same allowance the classic whois service gives. Addresses already granted a higher limit keep it here too. The allowance resets at 00:00 UTC.

When the allowance runs out, the tool returns a structured quota_exhausted error with the reset time. Assistants read it and stop instead of retrying, so a runaway loop cannot burn through tomorrow’s budget.

Use pwhois_lookup_ips for lists. One call of 3,000 addresses costs the same as 3,000 single lookups but finishes in one round trip.
Ask the assistant to deduplicate addresses before looking them up. Repeats cost the same as new ones.
Call pwhois_my_quota before a large job, not after.
Higher limits are customarily granted free upon reasonable request for most uses, including education, research, security teams and government. Ask on the request form.

PRIVATE

No registration. No record of what you ask.

Nothing to sign up for and nothing to hand over. What you look up is answered and forgotten, exactly as it is for a whois query on port 43. All that is kept is the network address a connection was made from, so it can share that address’s allowance, and aggregate counts like the ones on the Stats page. Details in the privacy notice.

NEED MORE?

Need more than 5,000 a day?

Tell us who you are, what you are doing and which addresses you connect from. Education, research, security and government use is customarily granted a higher allowance, free, upon reasonable request.

Request a higher limit

in use

What assistants are asking.

The last 30 days of connector traffic statistics.

calls per day

Tool calls, last 30 days

tool calls

queries charged

tool mix

Which tools get used

lookup ips19.0%

lookup ip19.0%

registry record15.0%

prefix routes10.9%

my quota8.1%

asn prefixes7.5%

map4.6%

routing status4.2%

asn info4.2%

org search3.8%

top 10 by country

Where the assistants connect from

1USUnited States39281.8%

2CLChile20.4%

3EGEgypt10.2%

—?Unknown8417.5%

10.0k

addresses enriched

looked up through the connector in the last 30 days

99%

batched

of enriched addresses arrived in pwhois_lookup_ips batches rather than one at a time

10 ms

speed

median time to answer a tool call

network diagrams

Charts drawn

today (UTC)

0 by assistants (pwhois_map) · 0 on the web maps

last 30 days

19 by assistants (pwhois_map) · 63 on the web maps

An assistant chart is one pwhois_map call that returned a picture. A web map is one build, expansion or downstream fetch on pwhois.org/maps.

most mapped · 7 days

The networks people map most

Share of AS maps built on the web in the last 7 days. AS numbers only, never an address, and a network is listed once at least 2 different addresses have mapped it. Assistant charts keep no record of what was drawn.

AS36324 VOSTROM34.5%

AS16509 Amazon.com, Inc.6.9%

AS174 Cogent Communications, LLC3.4%

documentation

What the assistant already knows.

Prompt: enrich_logPaste any text with addresses in it. The assistant extracts them, looks them up in one batch and returns a tally by origin AS and country, plus the addresses with no route in the table, honestly labeled.

Prompt: profile_asGive an AS number. The assistant gathers who it is, what it originates in each family and what transits it, then writes a short profile you can drop into a ticket.

Docs resourcesFour reference documents ship with the connection: a field guide to every record attribute, the tool and cost table, the fair-use notes, and the network-diagram guide (pwhois://docs/maps). The assistant can read them without spending a query.

Structured errorsEvery error names its cause. quota_exhausted carries the reset time; invalid input says what was wrong. Nothing to parse from prose.

Same answers as port 43A tool call and a whois query return the same record from the same table. Verify anything with whob or whois -h whois.pwhois.org.

DataAbout 1.1 million IPv4 and 262 thousand IPv6 prefixes from around 90 BGP peers, refreshed daily, plus registry and geo data from every regional Internet registry. Live figures on the Stats page.

questions

Quick answers.

Does it cost anything?

No. The connector is free, like the whois service it sits on. Higher limits are also free for most uses.

Do I need an account or an API key?

No. Add the connector, press Connect on the page that opens, and start asking.

How is the daily allowance counted?

By the network address you connect from. Assistant calls and classic whois queries from that address draw from the same 5,000. pwhois_my_quota shows the balance any time.

What happens when I run out?

Tools return a quota_exhausted error with the reset time. The assistant stops and tells you. The allowance returns at 00:00 UTC.

Which clients work?

Claude.ai custom connectors, Claude Desktop, Claude Code, Cursor and any MCP client that supports Streamable HTTP with OAuth.

How current is the data?

The routing table is rebuilt daily from around 90 peers. pwhois_routing_status reports when the current cache was built, at no cost.

Can I look up a whole log at once?

Yes. pwhois_lookup_ips takes up to 5,000 addresses in one call (500 when you want every individual record) and clusters them by origin AS and country; for bigger logs the assistant simply sends the next chunk. The enrich_log prompt does the extraction for you.

Is it private?

Yes. There is no registration, and what you ask about is not kept, the same as a whois query on port 43. The network address you connect from is remembered so your queries share its allowance, and usage is published only as aggregate percentages.

Can the assistant draw a chart of a network?

Yes. Ask it to “draw a network diagram of AS15169” or “show me the BGP path to 2001:4860::/32” and pwhois_map answers with a picture (PNG by default, SVG on request), a link to the interactive map and a link that reproduces the exact look. Each chart costs 5 queries from the same daily allowance. See Network diagrams.

Is this the same data as whois.pwhois.org?

Yes. Same table, same records, same allowance. The connector is a new door into a service that has been open since 2005.
